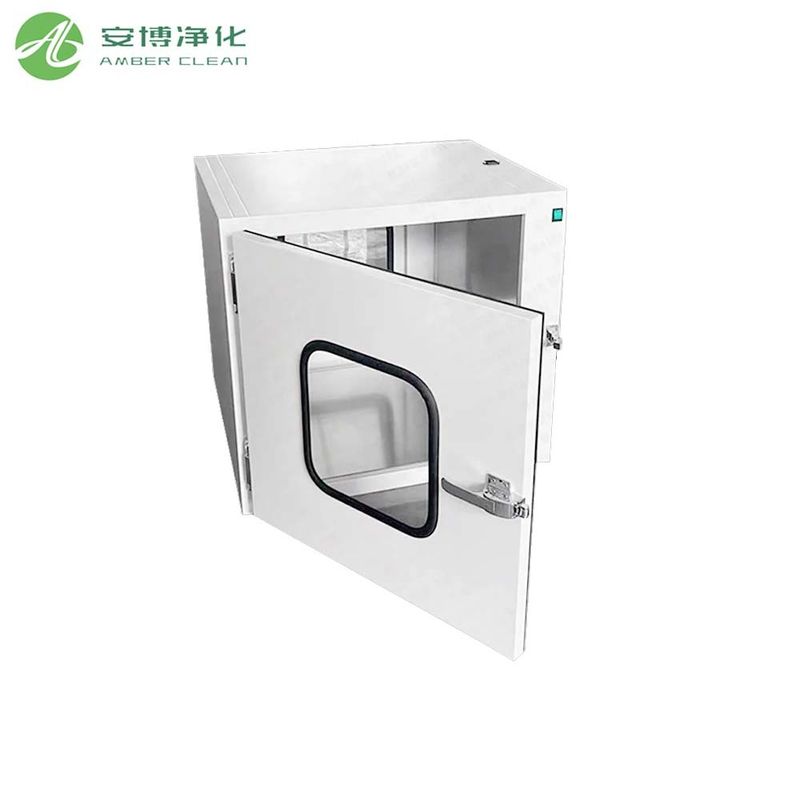

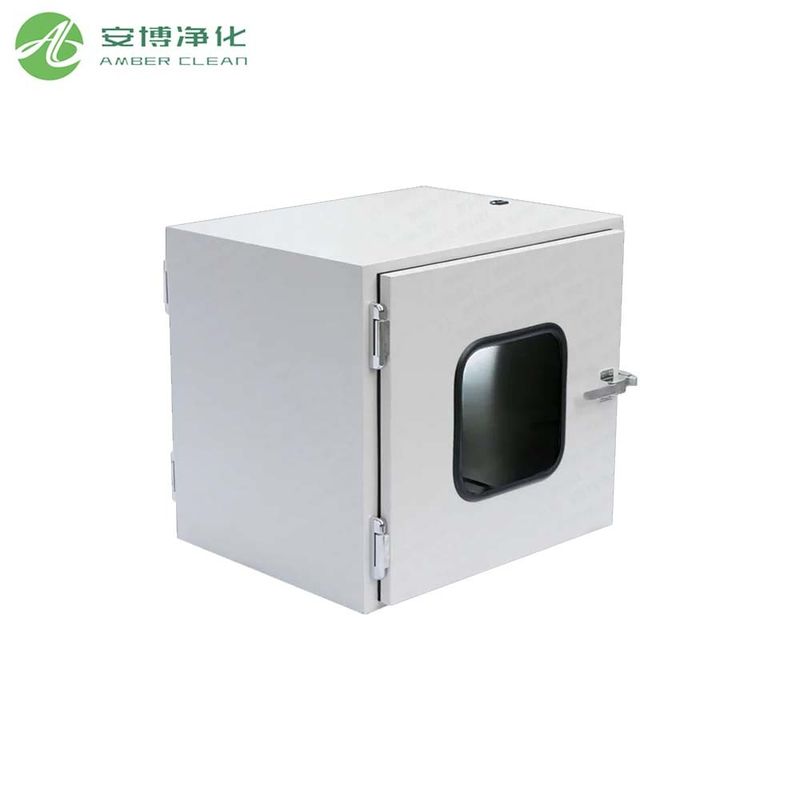

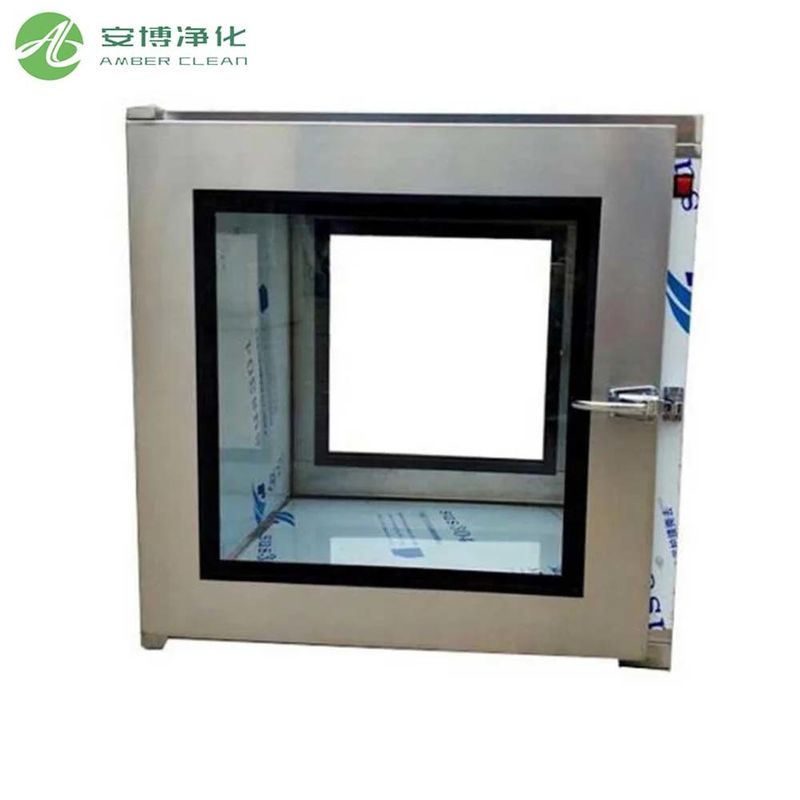

Amber's SUS201 Static Cleanroom Mechnical Interlock Pass Box adopts a static mechanical interlock design to ensure that the two doors cannot be opened at the same time. The Pass Box controls the risk of cross contamination from the source and is an important configuration for industries such as pharmaceuticals, microelectronics, and biological laboratories.
Cleanroom Pass Through Box Product Features and Advantages
The Mechanical Interlock Pass Box from Amber has a built-in mechanical interlock device. When one door is opened, the other side is automatically locked, effectively preventing clean air leakage and polluted air from entering, and improving the stability of the cleanroom environment. Simple structure, high stability, maintenance-free.
The body of Pass Through Box is made of SUS201 stainless steel, which has good corrosion resistance, a smooth surface, and is easy to clean and disinfect. If higher corrosion resistance is required, SUS304 stainless steel can be selected, which is suitable for places with strong environmental corrosion such as chemical preparations and biopharmaceuticals.
The difference between SUS201 and SUS304
| Item |
SUS201 |
SUS304 |
| Material composition |
High in manganese and low in nickel |
High nickel content, stronger corrosion resistance |
| Rust resistance |
Medium, suitable for general clean room use |
Better, suitable for pharmaceutical/laboratory environment |
| Price |
Low price, high cost performance |
Slightly higher, suitable for high-demand places |
Common application areas of Cleanroom Pass Through Box
1. Pharmaceutical preparation workshop
2. Biological laboratory
3. Electronic product dust-free production line
4. Food purification and packaging workshop
Specifications
| Model |
CDC-C-400 |
CDC-C-500 |
CDC-C-600 |
CDC-C-800 |
| Out size(W*D*H) |
600*470*1000 |
700*570*1100 |
800*670*1200 |
1000*870*1400 |
| Inner size(W*D*H) |
400*400*400 |
500*500*500 |
600*600*600 |
800*800*800 |
| Filter size mm |
260*260*90 |
330*280*90 |
430*380*90 |
630*580*-90 |
| Motor Power |
200W |
300W |
400W |
600W |
| Air Speed(m/s) |
0.45±20%
|
| Cleanliness |
Grade A |
| Noise |
＜65dB |
| Showing Time |
0-99 min adjustable |
| Voltage |
AC 220V/50HZ |
If your cleanroom project has strict requirements on the safety and stability of item delivery, choosing SUS201 Static Cleanroom Mechnical Interlock Pass Box will be an ideal solution that is economical, practical and easy to maintain. At the same time, we also provide SUS304 Cleanroom Interlock Pass Box customization services to meet the needs of higher corrosion resistance and chemical resistance. If you have any needs, you can contact our Amber Team online.
FAQ
Q1: What is the function of the UV lamp in the Pass Box?
A: UV light effectively reduces the risk of microbial contamination, ensuring the cleanliness and safety of materials. In some Cleanroom Static Pass Boxes, UV sterilisation lamps are installed to assist in sterilising the surfaces of items before and after transfer, particularly suitable for pharmaceuticals, food, and biological laboratories.
Q2: What is the difference between a Static Pass Box and a Dynamic Pass Box?
A: A Static Pass Box lacks a self-circulating fan system and relies on the cleanroom's own environment to maintain internal cleanliness, making it suitable for areas with the same cleanliness level. A Dynamic Pass Box is equipped with a HEPA filter and fan, creating a unidirectional airflow to maintain clean airflow during transfer, making it suitable for transferring items between areas with significant cleanliness differences.
Q3: Why choose AMBER Laminar Cleanrooms Static Pass Box?
A: AMBER has specialised in cleanroom auxiliary equipment for over 17 years, with products certified to ISO and CE standards.
